Description

As cell phones and wireless devices have become commonplace in today’s environment, the need to preserve their integrity throughout the forensics process has become an ongoing challenge to law enforcement personnel. Even the most experienced forensics lab has hit the occasional brick wall trying to connect their diagnostic software directly to the phone. As more and more new phones and protocols are rapidly introduced, connectivity and compatibility problems with even the latest software can crop up unexpectedly, but there is one universal interface that will never be out of date and never fail… simply looking at the device display!

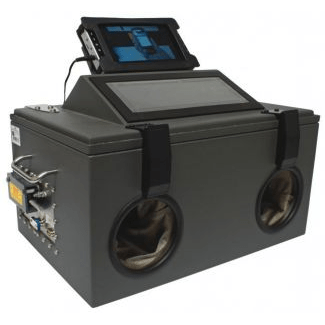

With the new Isolation Chamber, the concept has been taken one step further by adding a built-in high resolution color video camera inside the box, and a 7″ widescreen color TFT display on the outside – but this display isn’t just a monitor! Not only does it give you the clearest and closest view yet of the device under test, it’s also a high resolution digital video recorder with 40GB of storage! Once the forensics interrogation begins, as you manually scroll through the phone displays and menus using the RF-tight silver mesh gloves, a video record can log every move onto the DVR! And it gets even better – a built-in microphone on the device is recording as you work, allowing you to narrate throughout the process without the need for another recorder.

• Custom designed for the forensics industry
• Wireless device testing
• Perfect for 802.11a, b, g, n, AC, 4GTE
• Bluetooth, RFID, 3G testing
• Wide variety of I/O options
• Super isolation up to 18GHz
• Stock models to fit your custom applications

Features

• Designed to record audio/video and time-stamp all forensics interrogations in your lab
• Patented design
• RF tight hands-on access to your device
• RF tight illuminated viewing of your device
• Built-in high-res OSD color video camera with audio
• Built-in 500GB law enforcement DVR
• 3/4″ GEN-2 high efficiency RF foam liner
• GEN-2 high efficiency RF gaskets
• Exclusive double lip RF seal
• Universal removable I/O panel

Isolation

•  90dB @ 918MHz
•  85dB @ 2.4GHz
•  80dB @ 5.8GHz

Connectors

• RF isloated 6-outlet 110VAC power strip
• 2ea RF isolated 4-pole feed-through terminal blocks
• RF isolated USB2.0 high speed interface
• Additional options available

Dimensions/Weight

• Exterior: 12.8″H x 18.0″W x 12.0″D
• Interior: 8.0″H x 16.8″W x 10.5″D
• Shipping: 28″H x 22″W x 17″D
• Weight: 32lbs
