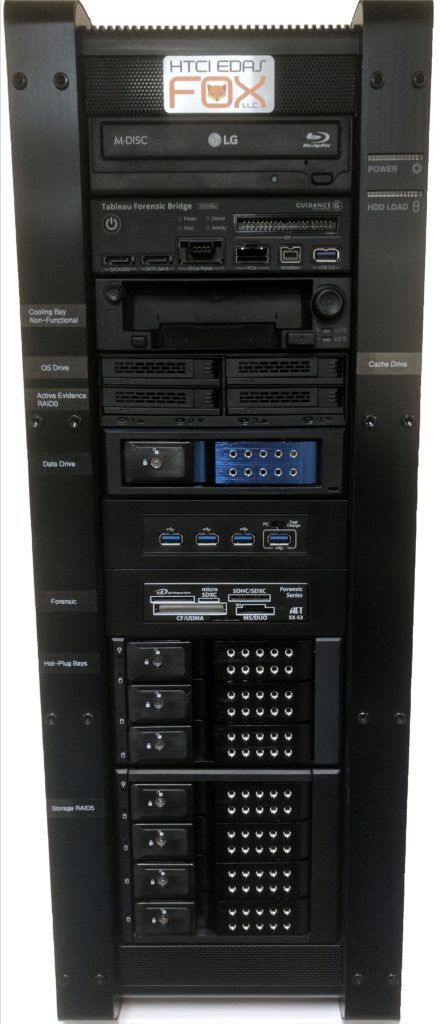

HTCI EDAS ‘Optimized w/RAID’


The HTCI EDAS Optimized with RAID 2020 Series edition is a high speed dual CPU system featuring the latest in Intel based CPU Technology.
Please call or email for quote and shipping cost!!! 727-953-3371 or



The HTCI EDAS Optimized with RAID edition is a high speed dual CPU system featuring the latest in Intel based CPU Technology. The HTCI EDAS Optimized with RAID was designed to bring the very best in processing power to today’s forensic investigators; Combining dual high-speed multi-core processors, high speed Error Checking Memory, and a high performance SSD to give you the best performance available. All HTCI EDAS Systems are user friendly, and support all Windows based forensic platforms. The addition of a RAID Array to the system gives you a perfect package to process and store data all on one machine.


  • An industry setting standard of 3 years parts and depot labor warranty.
  • Two High Speed Intel ® Xeon Silver 4114 Ten Core Processor Clocked at 2.2Ghz (3.0Ghz Turbo).
  • 64GB of High Speed, Error Checking DDR4 2400 Quad Channel Memory.
  • An NVidia GeForce GTX 1660Ti with multi-monitor support to ensure a silky smooth experience whether you are processing cases, writing reports, or viewing evidence.
  • A ultra-fast M.2 512GB 32Gb/s NVMe OS Drive to give you lightning fast access to your EDAS FOX System.
  • 512GB SSD for Temp
  • 512GB SSD for Cache/DB drive
  • 2 x 1 TB SSD for Active Evidence in RAID0
  • A High Capacity, High Speed 4TB 7200 RPM 6Gbp/s Hard Disk Data Drive to store files.
  • A High Capacity (4 x 4TB), RAID5 Array Connected to a Dedicated Raid Card.
    Intel® I210-AT, 2 x Gigabit LAN Controller(s).
  • High Speed USB 3.0 for up to 10X Faster data transfers than USB 2.0.
  • 3x Hot Plug SATA Tray-less Bays, giving you access to easy to use, high speed hard drive bays for extra storage.
  • An Integrated Write-Blocked Multi-Card Reader to ensure forensically sound access to all types of media cards.
  • An integrated Write-Blocked Forensic Bridge, With USB 3.0, SATA, IDE, SAS, FireWire, and PCIe Connections. Tableau or Logicube.
  • A highly efficient 1300 Watt 80 Plus Gold Certified Fully Modular Power Supply to ensure stability, and high power capacity for all your needs.
  • 2 x 24 Inch LED Monitor
  • Wireless Keyboard / Mouse Combo (Wired available at no charge for DOD or other such requirements)


Tech Specs

Supported CPU
CPU Socket Type Intel® Socket 2066
CPU Type Dual Intel Processor Xeon Silver
Processor Number Silver 4114
Number of CPU Cores 10
Number of CPU Threads 20
CPU Speed (GHz) 2.2GHz
Turbo Speed (GHz) 3.0GHz
CPU Cache 13.75 MB L3
Lithography 14nm
Heatsink Premium Grade Quiet Air Cooling Solutions
Chipset Intel C621
Slots 12 x DIMM
Speed DDR4 2400
Memory Installed 64GB (4 x 16GB) ECC
Maximum Memory 768GB
Channel Supported Quad Channel
Expansion Slots
PCIe 3.0/2.0 x16 7
Video Card
Chipset Manufacturer NVIDIA
GPU GTX 1660Ti
Memory 6GB GDDR6
Video Ports 1x HDMI, 3x DP
Storage Devices
SATA 6Gb/s 10
M.2 32Gb/s 1
Storage Configuration
OS Drive 512GB M.2 32Gb/s
Temp Drive 512GB SATA 6Gbp/s SSD
Cache Drive 512GB SATA 6Gbp/s SSD
Active Evidence 2 x 1 TB SATA 6Gbp/s SSD’s (RAID0)
Data Drive 4TB 7200RPM SATA 6Gb/s HDD
Storage RAID 4x 4TB 7200RPM SATA 6Gb/s HDD’s (RAID5)
Onboard Audio
Audio Chipset 8 Channel Realtek ALC888 High Definition Audio CODEC
Onboard LAN
LAN Chipset 2x Intel I210-AT
Max LAN Speed 10/100/1000Mbps
Rear I/O Ports
PS/2 1
RJ45 2
USB 2.0 4
USB 3.0 4
USB 3.1 4x Gen1
S/PDIF Out 1x Optical
Audio Ports 8-Channel Audio I/O
Front I/O Ports
USB 2.0 2
USB 3.0 8 (2 Top Mounted / 6 Front Mounted)
eSATA 1x eSATA 6Gbp/s
Audio 1x Headphone, 1x Microphone
SATA Drive Dock 1x Top Mounted SATA Dock for 2.5″ and 3.5″ Drives
USB 3.1 1 x Gen2 Type-C
Front Mounted 5.25″ Bays
Optical Disk Drive 16x Blu-Ray Burner
Forensic Bridge Tableau T356789iu or Logicube Write Protect Bay (USB 3.0, SATA, SAS, IDE, Firewire 800, and PCIe)
Cooling Bay 2.5″/3.5″ Hard Drive Cooling Bay For Imaging
SSD Drive Bay 4x 2.5″ SATA Trayless
Data Drive Bay 1x 3.5″ SATA Trayless
USB 3.0 Hub 4 Ports
USB 3.1 Hub 1x Gen2 Type-C, 2x Gen1 Type-A
Hot-Swap Bay 3x 3.5″ SATA Trayless
RAID Bay 4x 3.5″ SATA Trayless
On-Board Power Button Yes
On-Board Reset Buttton Yes
On-Board CMOS Reset Yes
On-Board Diagnostic LED Yes
Operating System
Windows 10 64-Bit Professional
Power Supply
Maximum Wattage 1300 Watts
80 Plus Certification 80 Plus Gold Certified
Modular Fully Modular Power Supply
Software Pre-Installed
Browser Internet Explorer
System Dimensions
Width 9.06 Inches
Height 24.33 Inches
Depth 26.10 Inches
Weight 65+ Pounds
Peripherals Included
Monitor 2x 24 Inch LED Monitor
Keyboard / Mouse Wireless Combo (Wired upon request)
USB 3.0 Card Reader Forensic Card Reader
Tool Kit Multi-Piece Toolkit to assist in Digital Evidence Gathering
