TK6u Forensic Bridge Kit

$579.00 $550.00

TK6u SAS Forensic SAS Bridge Kit. Includes T6u, TP2 power supply line cord, TC4-8-R2, TC-USB3, and QuickStart Guide in a black TB1 bag.

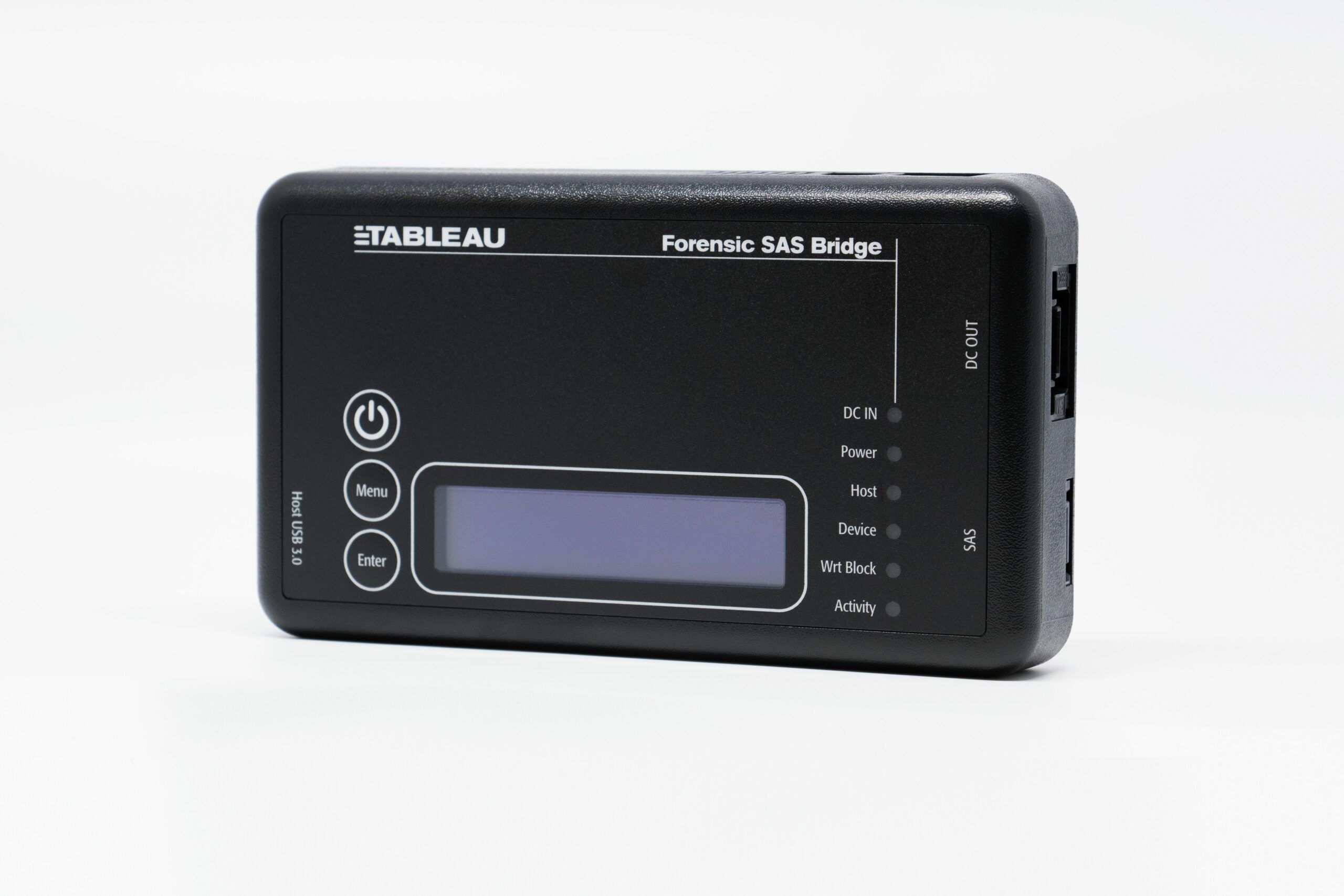

Tableau TK6u SAS Forensic Bridge Kit

Significantly faster SAS imaging speed; 2x faster than the Tableau T6es Forensic SAS Bridge.

Ability to switch SAS write-blocker into read-write mode to enable formatting or wiping of SAS HHD’s.

New back-lit user display; Identical size as the Tableau T6es (fits into existing kits).

Additional information

Weight 2 lbs
Dimensions 12 x 10 x 10 in

Tech Specs

Connectors: Host Side
  • One USB 3.0 Standard-B connector
  • Connectors: Device Side & Top Side
  • (1) SAS signal connector
  • 4-Pin 3M drive power connector (power to SAS hard drive
  • DC Input - one 5-pin Mini-DIN connector for the Tableau TP2 power supply and one bayonet connector for the Tableau TP5 Power Supply
  • Switches: Power Button
  • Toggles DC Power for T6u
  • Switches: DIP Switch
  • The 4-position DIP switch configures user-selectable options. Default setting is switch one “OFF” (write-blocked). Toggle switch one to “ON” for read/write operation. Accessible by removing knock-out panel on bottom of T6u
  • User Interface
  • LCD - 2 Row x 16 Column monochrome LCD character display with LED Backlight
  • Buttons - Three buttons: Menu and Enter buttons for navigation, plus an On/Off button to control the power to the T6u
  • Status LEDs
  • 6 LEDs:
  • DC IN Good
  • Power ON
  • Host Detect
  • Devise Detect
  • Write-Block Enabled
  • Drive Activity
  • Compatibility: SAS
  • SAS Hard Disks
  • Compatibility: Host Interface
  • Microsoft Windows version 7, 8, 10
  • Macintosh OS X
  • Most Linux distributions
  • Power
  • 6.5 Watts Typical Operating (not including hard disk)
  • Supply Voltage (DC IN)
  • +5V @ 1.2A (max), +12V @ 0.6A (max) when powered using TP2 connector; +12V @ 1.2A (max) when powered using TP5 connector
  • Output Voltage (DC Out)
  • +5VDC @ 1A, +12VDC @ 1A
  • Dimensions
  • 5.75" x 3.25" x 1.125"
  • Weight
  • 7.2oz (222g)
  • Operating Temperature Range
  • 0 To 55 Degrees C (No Airflow)
  • Storage Temperature Range
  • -20 To 60 Degress C
  • Relative humidity
  • Up To 90% (Non-Condensing)
