Tough Tech Duo 3SR

$299.00

ToughTech Duo removes the frustration of RAID with an easy-to-use interface that provides RAID 0 and 1 functionality at the touch of a button. Configure Duo as a RAID 0 (stripe) for extra speed and storage capacity, or as a RAID 1 (mirror) for data protection from drive failure. 36020-3010-0100

Compare

Description

RAID – Not just a Four Letter Word

ToughTech Duo removes the frustration of RAID with an easy-to-use interface that provides RAID 0 and 1 functionality at the touch of a button. Configure Duo as a RAID 0 (stripe) for extra speed and storage capacity, or as a RAID 1 (mirror) for data protection from drive failure.

ToughTech Duo 3SR Features

ToughTech Duo 3SR boasts a passive thermal design for optimal heat dissipation, which requires no fans thus making Duo ultra quiet. Duo has front-accessible lockable trays, an intelligent LCD menu system, Kensington Lock, host connection LEDs, and a vertical stand. It connects to any host computer via USB 3.0 (2.0 compatible), and eSATA using an extremely fast Oxford 936 chipset. If needed, an AC power supply is also included.

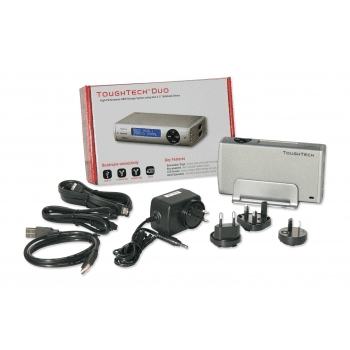

To make sure you can connect in any situation, all cables and adapters are included.

ToughTech Duo 3SR is bootable in USB/eSATA mode on any computer that supports this feature.

Smart Firmware, Smart Software

Access SMART data (Self-Monitoring, Analysis and Reporting Technology) directly on the LCD menu to track drive temperatures and help prevent drive failure. Companion software (Win/Mac compatible) allows you to configure what temperature the warning LEDs turn on and/or the audible alarms sound.

Multiple Power Options in Multiple Countries

An AC power supply is included, along with plugs for US, European, UK, and Australian wall connections.

Swap Drives without a Screwdriver

Innovative trays used in ToughTech Duo allow you to swap a drive in a matter of seconds. Mount drives without screws for quick and safe access or screw down the drives in environments where additional protection is needed. This feature may be used to eject a drive to share with a colleague or replace both drives to access a 2nd RAID set. ToughTech Duo was designed for easy access – swapping drives will not void the warranty.

How to rotate through backup disks:

Remember – a mirror, while it protects against hard drive failure, is only the beginning of your backup strategy. Keeping a separate copy of your data on another hard drive (in this case a third hard drive), helps protect you from data corruption and accidental file deletion. This is easily accomplished with a ToughTech Duo in mirror mode. Simply unmount the volume to stop all write activity, remove one of the two drives, and then insert a third drive. You can remount your ToughTech Duo immediately as you work. ToughTech Duo will rebuild your data to the third drive, restoring the full mirror. The removed drive can be treated as a backup that you can archive in a fireproof safe, off-site and away from the original data. You may access the information on your backup disk anytime with Duo or another enclosure or drive dock; it becomes a standalone drive.

RAID 0 and RAID 1 (selectable)

– RAID 1 for easy duplication of data in the field (Data Protection)
– RAID 0 for large FAST working volumes in the field (Data Performance)

High Capacity Storage

Stores up to 1.5TB striped or 750GB mirrored with two 2.5″ 750GB notebook drives.

Dual Drive Sleds

With built-in locks – No tools needed to remove and reload a drive. Removing/replacing drives does not void enclosure warranty.

World-compatible AC Adapter (optional)

Multi-country AC power supply: US, European, UK, and Australian plugs included.

Connection Options

A USB 3.0, USB 2.0, eSATA.

Indicator LEDs

Power, system and RAID LEDs show access and confirm RAID functionality.

Fast Transfer Rates

With an Oxford chipset, USB 3.0 and eSATA outperforms many older desktop drives when configured with 7200 RPM drives.

Additional information

Weight 2 lbs
Dimensions 8 x 5 x 3 in

Tech Specs

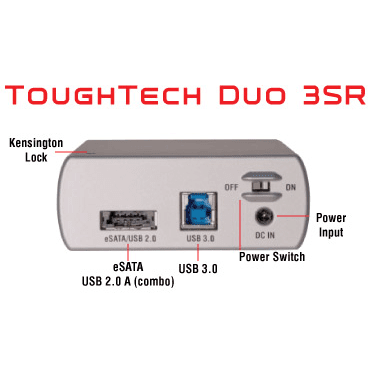

Host (I/O) Ports
  • (1) USB 2.0 (Up To 480Mb/s)
  • (1) USB 3.0 (Up To 5Gb/s)
  • (1) eSATA (Up To 3Gb/s)
  • Drive Types Supported
  • SATA 2.5" Drives (Up To 9.5mm Height)
  • SATA Solid State Drives
  • SATA Speed
  • 3Gb/s
  • Bay Type
  • Removable Tool-Free Sled
  • Insertion Rating
  • Up To 50,000 Drive Insertions
  • Number Of Bays
  • 2
  • Lockable Bays
  • Yes
  • Supports S.M.A.R.T. Disk Info
  • Yes
  • RAID
  • Yes
  • RAID Info
  • RAID0 (Stripe), RAID1 (Mirror)
  • Number Of LEDs
  • 7
  • Description Of LEDs
  • System Power
  • System Status
  • RAID Status
  • LEDs On Each Bay
  • Power And Drive Access For Each Bay
  • Audible Alarm
  • Yes
  • LCD Screen
  • Two-Line BackLit LCD Controlled With Four Soft-Touch Menu Navigation Buttons
  • LCD Info
  • 2 Lines x 16 Characters Width
  • Operating System Compatibility
  • Windows XP Or Later
  • Windows Server 2003 Or Later
  • Mac OS 10.7 Or Newer
  • Linux Distributions That Support The Desired Connection
  • Fans
  • Fanless Design
  • Construction Material
  • Rugged All-Metal Construction
  • Power Switch
  • 2 Position: On/Off
  • Weight
  • 1.25lbs
  • Kensington Lock
  • Yes
  • Compliancy
  • FCC, CE, RoHS, C-Tick
  • Warranty
  • 2 Year Limited Warranty
